90mm diameter 24V 48V pressure brushless dc blower manufacturer
High Speed 12v Dc Blower Fan
1. The WS9290 pressure blower is an excellent value fan thanks to its mature manufacturing process that has been refined over 15 years of experience with this model.
2. It features a three-phase brushless DC motor with Japanese imported NMB bearings. Despite the plastic casing, which has been certified by markets for over a decade, it remains highly reliable and can last up to 20,000 hours in a clean environment at 25 degrees Celsius.
3. This blower has also been certified with CE, ETL, ROHS, REACH, and ISO certification systems, proving its high quality and meeting all necessary regulatory requirements.
4. The WS9290 plower provides a consistent and powerful airflow, perfect for a range of industrial applications, including heating, ventilation, and air conditioning as well as manufacturing and processing equipment.
5. Invest in the WS9290 pressure blower and enjoy exceptional performance, long-lasting durability, and peace of mind knowing you have a product that's certified to meet the highest standards of quality and safety.
Product Introduction
 |
 |
|
| Part no | WS9290-24-220-X200 | WS9290B-48-220-X300 |
| Voltage | 24VDC | 48VDC |
| At max airflow | ||
| Speed | 22,500rpm | 26,000rpm |
| Current | 7.8a | 5.5a |
| Air flow | 47m3/h | 55m3/h |
| Noise | 83dba | 83dba |
| At max air pressure | ||
| Speed | 28,500rpm | 30,000rpm |
| Current | 5.2a | 2.9a |
| Air pressure | 12.5kpa | 14kpa |
| Noise | 66dba | 66dba |
| Block | 58dba | 58dba |
Drawing
Tips:
Overall size(L*W*H):90.6mm*91.4mm*94.4mm
Outlet size:φ17mm
Inlet size:φ22.5mm
Convex platform(W*H) 18mm*26.5mm
Blower Performance
WS9290-24-220-x300 blower can reach maximum 47m3/h airflow at 0 kpa pressure and maximum 12.5kpa static pressure.Other load point performance refer to below P-Q curve：
| @At Free Blowing | ||
| Speed | Current | Air flow |
| 22,500rpm | 7.8a | 47m3/h |
| @At Working Point | |||
| Speed | Current | Air flow | Air pressure |
| 25,500rpm | 7.7a | 25m3/h | 8.0kpa |
| @At Static Pressure | ||
| Speed | Current | Air pressure |
| 28,500rpm | 5.2a | 12.5kpa |
WS9290b-48-220-x300 blower can reach maximum 55m3/h airflow at 0 kpa pressure and maximum 14kpa static pressure.Other load point performance refer to below P-Q curve：
| @At Free Blowing | ||
| Speed | Current | Air flow |
| 26,000rpm | 5.5a | 55m3/h |
| @At Working Point | |||
| Speed | Current | Air flow | Air pressure |
| 27,000rpm | 2.9a | 28m3/h | 9.0kpa |
| @At Static Pressure | ||
| Speed | Current | Air pressure |
| 30,000rpm | 2.9a | 14kpa |
DC Brushless Blower Advantage
1. Mature production process: WS9290 pressure blower has been manufactured for over 15 years, making it a top-tier product in the company's lineup.
2. Premium materials: This blower uses high-quality NMB bearings imported from Japan, with a three-phase DC brushless motor for reliable and efficient operation. Although the housing is made of plastic, the product has undergone more than 10 years of market certification and is proven to be highly durable - lasting up to 20,000 hours in a 25°C clean environment.
3. Certified quality: WS9290 comes with CE, ETL, ROHS, REACH, and ISO certifications, ensuring that it meets the highest standards of quality and safety.
4. Excellent value: With a competitive price point and top-tier performance, WS9290 pressure blower offers exceptional value for customers.
5. Versatile application: This product is suitable for a wide range of applications, including industrial equipment, HVAC systems, and air circulation in commercial and residential spaces.
WS9290 pressure blower is a cost-effective solution that delivers exceptional performance and reliability, making it an excellent choice for businesses and individuals seeking a high-quality blower that won't break the bank.
Get yours today!
Recommend Blower
 |
 |
 |
|

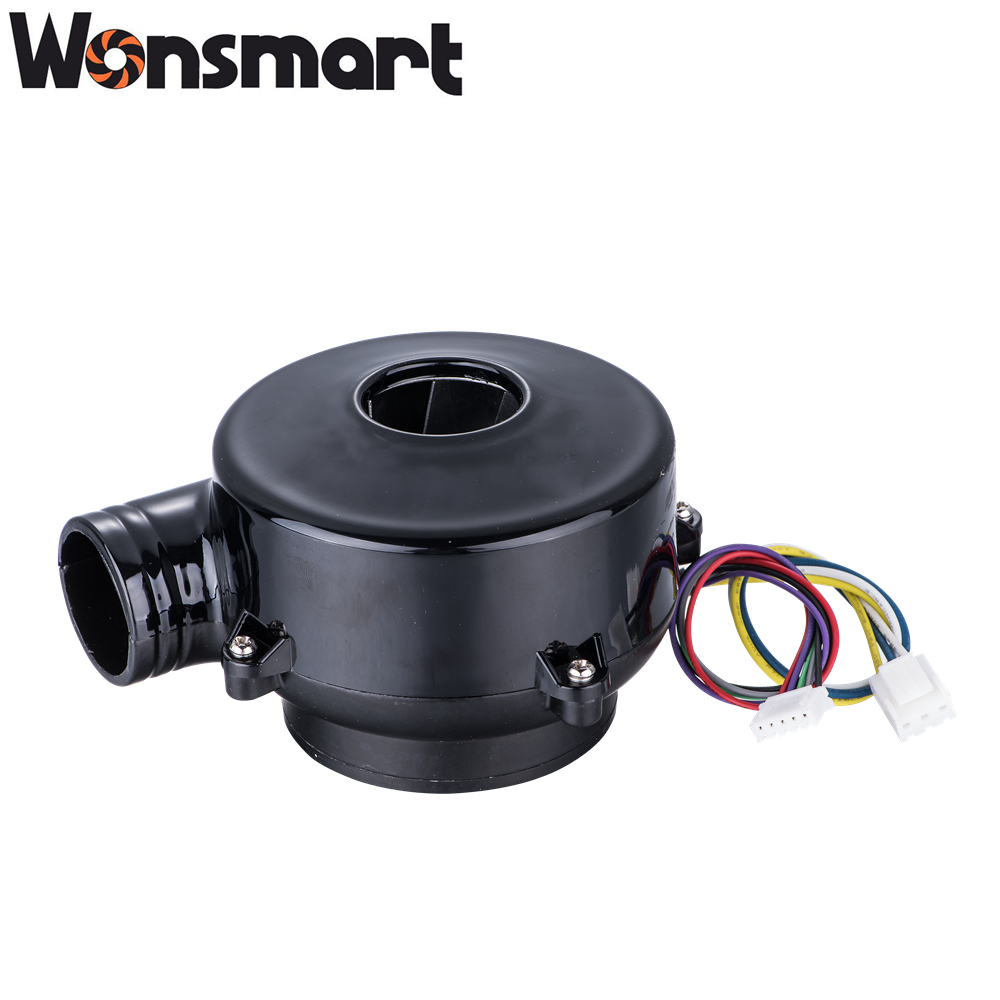

| Part No | WS9250-24-240-X200 | WS9260-24-250-X200 | WS8045-24-X200 |
| Voltage | 24VDC | 24VDC | 24VDC |
| Max.air flow | 57M3/H ( 33CFM ) | 130M3/H (76CFM) | 47M3/H ( 27CFM ) |
| Max.air pressure | 8.5Kpa | 7.5Kpa | 15.7Kpa |
| Power level | 84-172.8w | 103-192W | 79-192W |
