Top Suppliers High Speed Blower - 24v EC centrifugal blower fans – Wonsmart Detail:

Blower Features

Brand name: Wonsmart

High pressure with dc brushless motor

Blower type: Centrifugal fan

Voltage: 24vdc

Bearing: NMB ball bearing

Type: Centrifugal Fan

Applicable Industries: Manufacturing Plant

Electric Current Type: DC

Blade Material: plastic

Mounting: Ceiling Fan

Place of Origin:Zhejiang, China

Voltage: 24VDC

Certification: ce, RoHS, ETL

Warranty: 1 Year

After-sales Service Provided: Online support

Life time(MTTF): >20,000hours (under 25 degree C)

Weight: 80grams

Housing material:PC

Unit size: D70mm *H37mm

Motor type:Three Phase DC Brushless Motor

Outlet diameter: OD17mm ID12mm

Controller: external

Static pressure: 6.8kPa

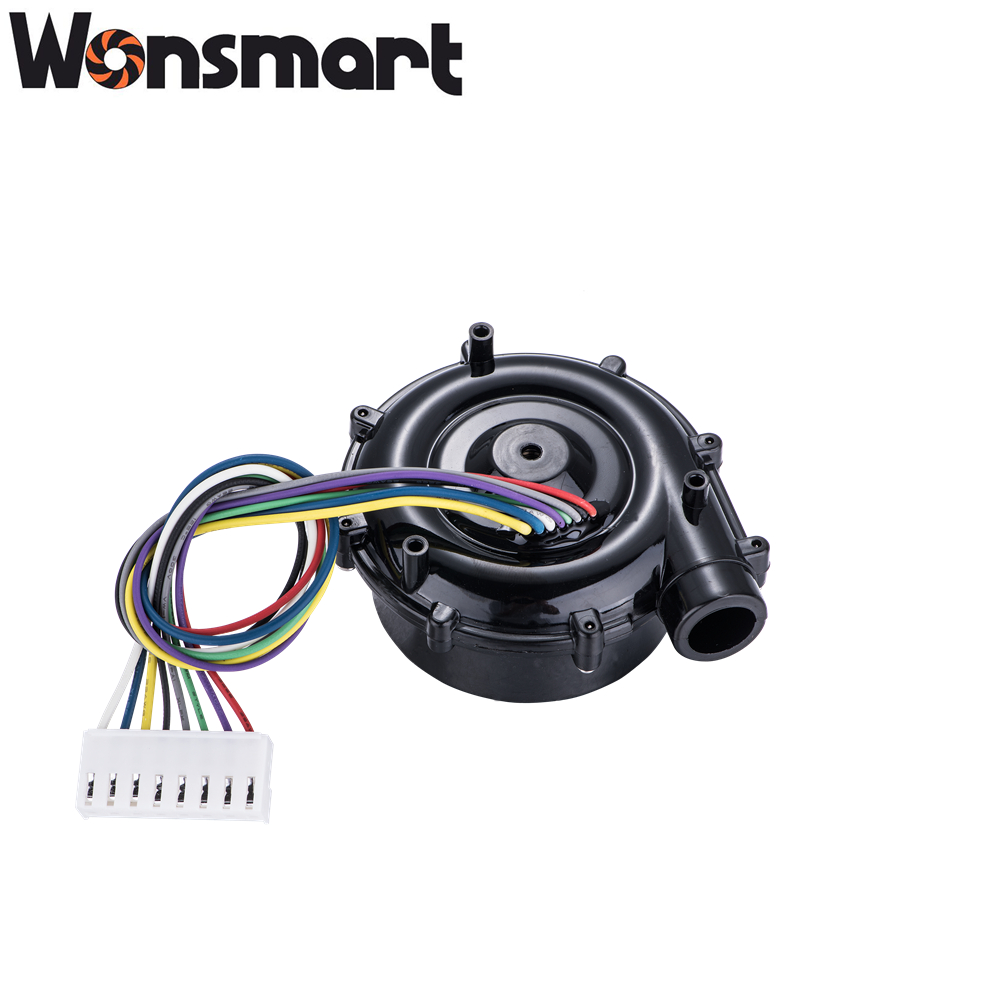

1 (1)
1 (2)

Drawing

Blower Performance

WS7040-24-V200 blower can reach maximum 22m3/h airflow at 0 kpa pressure and maximum 6.8kpa static pressure. It has maximum output air power when this blower run at 3kPa resistance if we set 100% PWM. It has maximum efficiency when this blower run at 5.5kPa resistance if we set 100% PWM. Other load point performance refer to below P-Q curve:

WS7040-24-V200-Model_00 - 1

DC Brushless Blower Advantage

(1) WS7040-24-V200 blower is with brushless motors and NMB ball bearings inside which indicates very long life time; MTTF of this blower can reach more than 20,000 hours at 20 degree C environmental temperature.

(2) This blower needs no maintence

(3) This blower drived by a brushless motor controller have many different control functions such as speed regulation,speed pulse output,fast acceleration, brake etc.it can be controlled by intelligent machine and equipment easily.

(4) Drived by brushless motor driver the blower will have over current, under/over voltage,stall protections.

Applications

This blower can be widely used onto air cushion machine, CPAP machine, SMD soldering rework station.

How to Use the Blower Correctly

720180723

FAQ

Q: What we can do if the working condition is dirty?

A: A filter is strongly recommended to assemble onto the the inlet of the blower fan

Q: How to decrease the noise of the blower?

A: Many of our customers use foam, silicone to fill between blower fan and machine to insulate the blower noise.
